MONO M310 SINGLE FLAT POST & TUBULAR HANDRAIL GLASS INFILL SYSTEM SIDE FIX
MONO M311 SINGLE FLAT POST & TUBULAR HANDRAIL GLASS INFILL SYSTEM TOP FIX
MONO™ M310/M311
VERSATILE. INDIVIDUAL. CREATIVE.
Mono is best known as a robust solution capable of withstanding high loading, whilst providing a modern unobtrusive style.
For these reasons, it is often used for terraces, atriums and areas where extra guarding height is required. Also can be applied to feature staircases in these environments to create a consistent contemporary feel.
Key Benefits
- Pre-manufactured to speed up installation
- Creates high value spaces
- No hot works on site
- 100% bolt-through glass lugs eliminating glass slippage
-

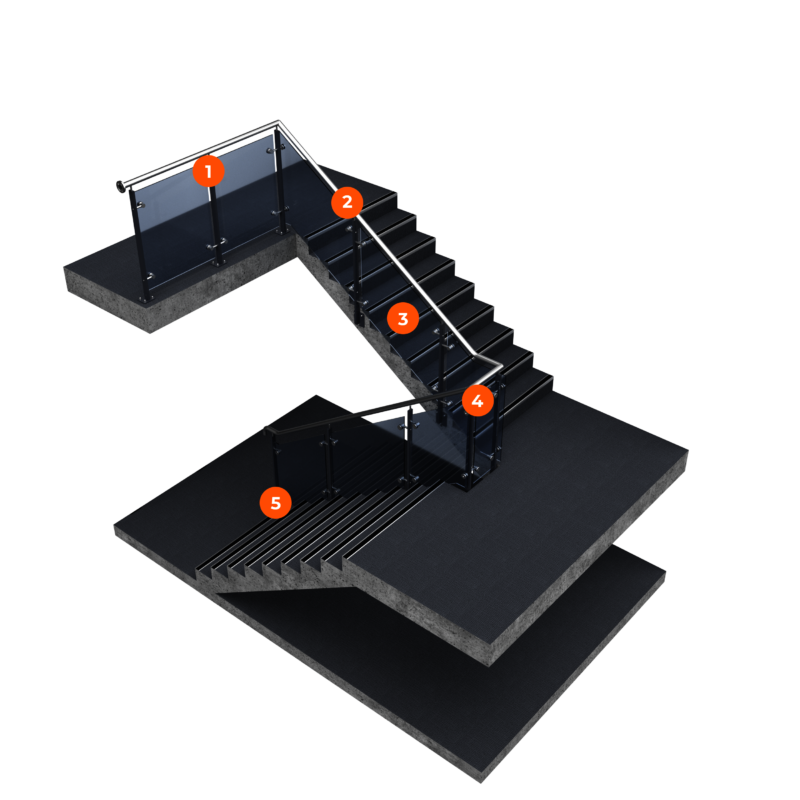

1⌄Fittings
L4 - Banjo lug
L5 - Inline barrel lug
-
2⌄Finishes
Satin polish stainless steel
Bright polish stainless steel
PPC solid colour
PPC metallic colour
Hardwood (handrails only)
Harwood effect
-
3⌄Infill
Toughened glass
Laminated glass
Etched glass
Screen printed glass
Coloured glass
Extended glass (above the handrail)
-
4⌄Handrail Fittings
BB3 - Offset handrail (single or double) with radius bracket
BB4 - Offset handrail with slimline barrel bracket
BB6 - Inline handrail
-
5⌄Side & Top Fix Fitting
Fascia mount side fix
APPLICATIONS
STADIUMS
HOTELS & LEISURE
HEALTHCARE
RESIDENTIAL
EDUCATION
TRANSPORT
COMMERCIAL
RETAIL
COMMUNITY & PUBLIC
FAQS
-
⌄What is the minimum glass infill panel width?
100mm wide with fixing holes at least 360mm apart vertically.
-
⌄Can a glass infill panel extend above the handrail?
Yes, if using offset handrails. The handrails must be fitted to the side where the public has access.
-
⌄Are there options for glass fixing lugs?
Yes, for the Mono range we offer 'banjo' shaped lugs and barrel lugs (see website for details). All Delta lugs are bolt through which requires holes in the glass. This eliminates the possibility of glass slippage. They all also have sleeves in them to ensure the bolt fixing can't come in contact with the glass.
COMPLIANCE
All of our balustrade and handrail systems are fully compliant to the appropriate regulations, including:
– Construction Products Regulations 2013 (CPR 2013)
– BS EN 1090-1 (CE Mark Accredited)
– BS6180
– BS6399/EN1991
– BS8300 -BS5395
– AD Part M & Part K
– Disability Discrimination act (DDA) guidelines now included in the Equality act
Excellent service. The operatives carrying out the installations were very helpful and professional.”
Senior Quantity Surveyor | Galliford Try
FINISHES
Satin polish stainless steel
Low maintenance and highly durable for internal and external use.
Bright polish stainless steel
For use in leisure facilities and coastal locations.
PPC solid colour
Polyester powder coating available in various colours. Contact Sales for more info.
PPC metallic colour
Metallic polyester powder coating available in various colours. Contact Sales for more info.
Hardwood (Handrails only)
Available in variety of woods. Contact Sales for more info.
Hardwood Effect
Available in a variety of wood effects. Contact Sales for more info.
INFILLS
Alternative infills.
Handrail Only
Perforated Panel
Low maintenance and sturdy, well suited for public use and available in a variety of PPC Solid and Metallic colours.
COST INDICATION
