ORBIS OS240 TUBULAR POST & RAIL TENSION WIRE INFILL SYSTEM SIDE FIX
ORBIS OS241 TUBULAR POST & RAIL TENSION WIRE INFILL SYSTEM TOP FIX
ORBIS™ OS240/OS241
EFFECTIVE. DEPENDABLE. REFINED.
Orbis is our most popular system, utilised in many varied applications due to its flexibility and is very quick to install.
The horizontal Tension Wires provide a modern and engaging appearance for commercial, higher education, and other buildings which cannot be accessed by children under the age of 5.
Key Benefits
- Pre-manufactured to speed up installation
- No hot works on site
- Easy cleaning
-

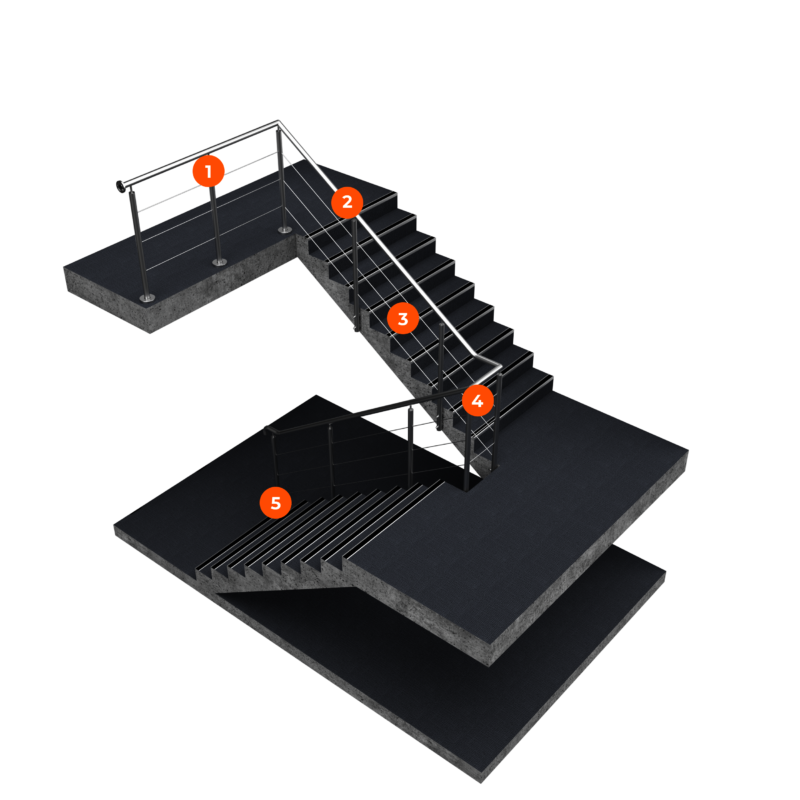

1⌄Fittings
N/A
-
2⌄Finishes
Satin polish stainless steel
Bright polish stainless steel
PPC solid colour
PPC metallic colour
Hardwood (handrails only)
Harwood effect
-
3⌄Infill
Tension wires (min. 2 - max. 8)
-
4⌄Handrail Fittings
BB6 - Inline handrail
BB3 - Offset handrail with radius bracket
-
5⌄Side & Top Fix Fitting
SF1 - 2 point side fix
TF1 - Top fix (with circular cover rose)
APPLICATIONS
STADIUMS
HOTELS & LEISURE
HEALTHCARE
RESIDENTIAL
EDUCATION
TRANSPORT
COMMERCIAL
RETAIL
COMMUNITY & PUBLIC
FAQS
-
⌄What is the specification for wire infills?
5mm diameter wire rope used with 8mm diameter tensioners and end stops supplied and fixed as necessary.
-
⌄What are the design considerations for balustrades?
i. Heights, termination points, warm to touch, finger traps & diameter.
ii. For guarding design: heights, 100mmØ sphere & horizontal loads. -
⌄What are the design considerations for stair widths influencing balustrade & handrails?
This depends upon which regulations are being applied, and which the critical dim is going to be; 'Clear Width' between handrails (Access requirements) or 'Escape Width' (Evacuation requirements), other considerations for design are: double handrail which can affect achievable widths, plus some stair widths in excess of 2m (or 1.4m for stairs taller than 30m), which require central handrails.
COMPLIANCE
All of our balustrade and handrail systems are fully compliant to the appropriate regulations, including:
– Construction Products Regulations 2013 (CPR 2013)
– BS EN 1090-1 (CE Mark Accredited)
– BS6180
– BS6399/EN1991
– BS8300 -BS5395
– AD Part M & Part K
– Disability Discrimination act (DDA) guidelines now included in the Equality act
– Carries Kitemark to demonstrate compliance
We have used Delta Balustrades on a number of projects and have found them to be very professional and straightforward in taking responsibility for the detailed design of the balustrades.”
Architect | Sheppard Robson
FINISHES
Satin polish stainless steel
Low maintenance and highly durable for internal and external use.
Bright polish stainless steel
For use in leisure facilities and coastal locations.
PPC solid colour
Polyester powder coating available in various colours. Contact Sales for more info.
PPC metallic colour
Metallic polyester powder coating available in various colours. Contact Sales for more info.
Hardwood (Handrails only)
Available in variety of woods. Contact Sales for more info.
Hardwood Effect
Available in a variety of wood effects. Contact Sales for more info.
INFILLS
Alternative infills.
Midrail
Horizontal midrails flow through the balusters to form a continuous line effect.
Handrail Only
Glass
Offers an uninterrupted eyeline, suitable in public and private applications. Available in an array of coloured tints and etched.
Perforated Panel
Low maintenance and sturdy, well suited for public use and available in a variety of PPC Solid and Metallic colours.
Vertical Bar
Robust modular panel solution ideal for utility areas and rear stairs.
