ORBIS OS250 TUBULAR POST & RAIL NO INFILL SYSTEM SIDE FIX
ORBIS OS251 TUBULAR POST & RAIL NO INFILL SYSTEM TOP FIX
ORBIS™ OS250/OS251
EFFECTIVE. DEPENDABLE. REFINED.
Orbis is our most popular system, utilised in many varied applications due to its flexibility and is very quick to install.Â
For applications where a freestanding handrail is required to steps and ramps, the Orbis system with no infill provides a simple solution with a range of fixing options to suit your requirements.
Key Benefits
- Pre-manufactured to speed up installation
- No hot works on site
- Smooth uninterrupted handrail transitions
-

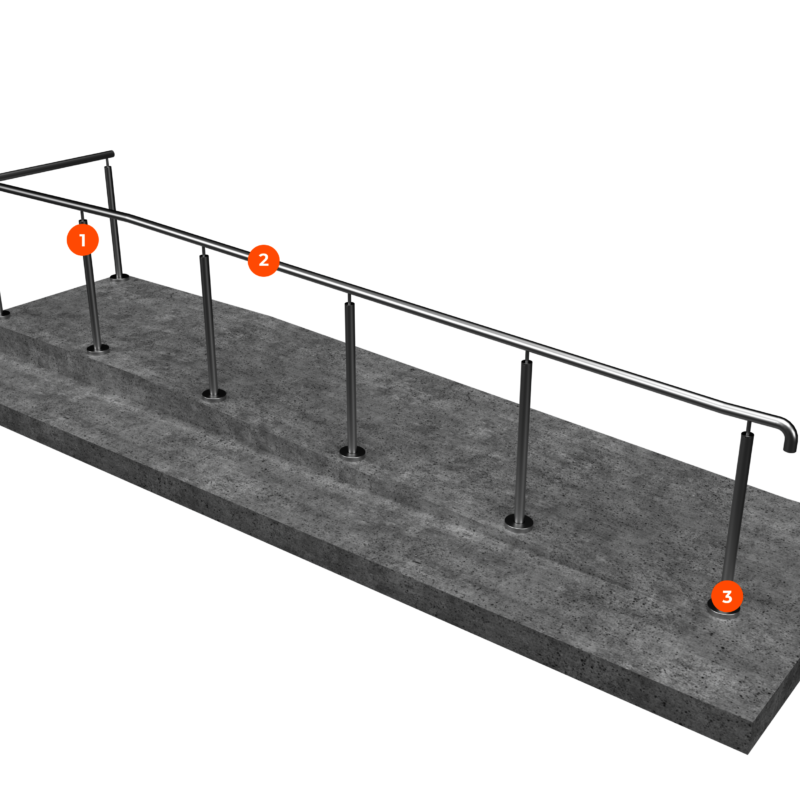

1⌄Handrail Fittings
BB6 - Inline handrail
BB3 - Offset handrail with radius bracket
-
2⌄Finishes
Satin polish stainless steel
Bright polish stainless steel
PPC solid colour
PPC metallic colour
Hardwood (handrails only)
Harwood effect
-
3⌄Side & Top Fix Fitting
SF1 - 2 point side fix
TF1 - Top fix (with circular cover rose)
APPLICATIONS
STADIUMS
HOTELS & LEISURE
HEALTHCARE
RESIDENTIAL
EDUCATION
TRANSPORT
COMMERCIAL
RETAIL
COMMUNITY & PUBLIC
FAQS
-
⌄What are the minimum embedment depths for fixing into concrete slabs?
We work to a minimum 100mm* embedment depth for fixing into a Solid Concrete, for Hollowcore 90mm* and Metal Deck 70mm* (* Top fix depths).
-
⌄Which regulations influence balustrade & handrail design?
Building Regulations: Authorised documents B, K & M and British Standards: BS8300, BS6180 & DS EN 1991-1-1
-
⌄What are the design considerations for handrail provision?
A continuous handrail should be provided to both sides of a stair flight, ramp and all stair and ramp landings (where this does not obstruct use of adjoining access routes).
COMPLIANCE
All of our balustrade and handrail systems are fully compliant to the appropriate regulations, including:
– Construction Products Regulations 2013 (CPR 2013)
– BS EN 1090-1 (CE Mark Accredited)
– BS6180
– BS6399/EN1991
– BS8300 -BS5395
– AD Part M & Part K
– Disability Discrimination act (DDA) guidelines now included in the Equality act
– Carries Kitemark to demonstrate compliance
CASE STUDIES
Alperton Community School, Wembley
Orbis OS210 Glass Infill Side Fix / Orbis OS251 No Infill Top Fix / Vista V503 Point Fix
Read More
Accrington & Rossendale College
Orbis OS211 Glass Infill Top Fix / Orbis OS221 Midrail Infill Top Fix / Orbis OS201 Vertical Bar Infill Top Fix / Orbis OS251 No Infill Top Fix
Read MoreExtremely helpful company with particular respect to technical advice and information.”
Architect | Miller Bourne Architect
FINISHES
Satin polish stainless steel
Low maintenance and highly durable for internal and external use.
Bright polish stainless steel
For use in leisure facilities and coastal locations.
PPC solid colour
Polyester powder coating available in various colours. Contact Sales for more info.
PPC metallic colour
Metallic polyester powder coating available in various colours. Contact Sales for more info.
Hardwood (Handrails only)
Available in variety of woods. Contact Sales for more info.
Hardwood Effect
Available in a variety of wood effects. Contact Sales for more info.
INFILLS
Alternative infills.
Midrail
Horizontal midrails flow through the balusters to form a continuous line effect.
Glass
Offers an uninterrupted eyeline, suitable in public and private applications. Available in an array of coloured tints and etched.
Perforated Panel
Low maintenance and sturdy, well suited for public use and available in a variety of PPC Solid and Metallic colours.
Vertical Bar
Robust modular panel solution ideal for utility areas and rear stairs.
Tension Wire
Stainless steel horizontal wire suitable for commercial ad non-public buildings.
